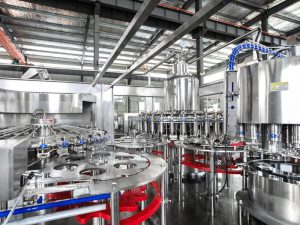

Glass Bottle Juice Bottling Machine

Description

Usage:

RCGF series glass bottle juice bottling machine can work for filling juice or tea into glass bottle. Full automatically; it can finish washing (bottle), filling and capping three jobs in the one machine. It equips temperature control system, so it can set filling temperature. When the temperature of the supplied material is higher or lower than the set one, it will stop automatically. When the material temperature is lower than the set one, the machine will material to the heating system to treat is again to ensure the set temperature.

Main paremeters:

Bottle material: glass bottle

Cap type: Aluminum cap, crown cap, easy pull cap, twist cap

Bottle size: 200ml- 2000ml

Production speed: 2000-20000bottle per hour

Primary features:

1. Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2. Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.
3. The all parts directly contacted with media all adopt food stage stainless steel without dead angle, so they can be cleaned easily.
4. Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
5. Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. And filling automatically with a high speed and the control of liquids level is accurate.
6. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
7. The “capping head” adopt magnetic-constant-torque device to ensure the high capping quality and without damages.
8. Adopting efficient cap settling system which carried perfect cap feeding and protection device.
9. It adopt spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
10. carried the perfect protection system to overload; it can protect facilities and operators efficiently.
11. Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.
12. The primary electric components such as touch screen\PLC\transducer etc. They all adopt world famous products.
